In PCB design, the hole size and pad diameter for through-hole components are critical parameters that determine assembly quality and product reliability. Proper hole size design is essential for automated assembly, good solderability, and long-term mechanical stability. Incorrect hole sizing can cause component insertion difficulties, soldering defects, and potential reliability issues.
This guide provides a systematic approach to through-hole PCB hole size design, helping engineers avoid manufacturing problems and improve first-pass yield.

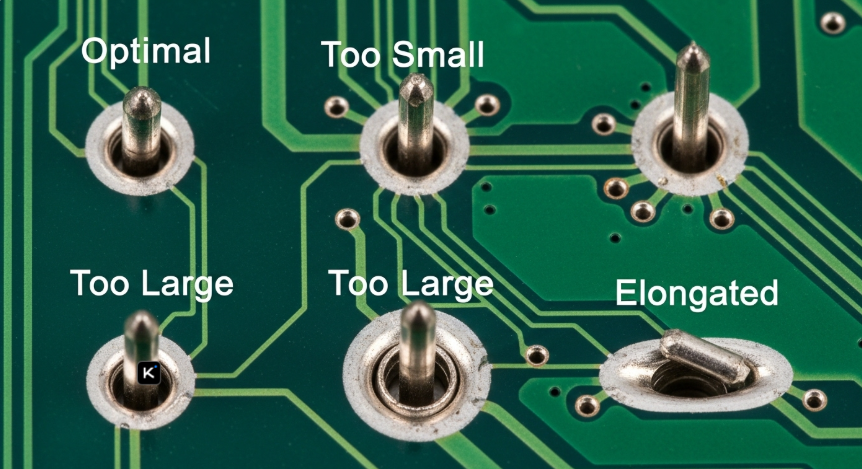

Through-hole size design must balance component lead physical dimensions with manufacturing tolerances.
Too small: Components cannot be inserted easily, increasing rework costs and risk of damaging leads or board material
Too large: Insufficient solder fill, component movement during assembly, and reduced mechanical strength
Rule of thumb: Add 0.2mm to the nominal lead diameter for a suitable hole size.

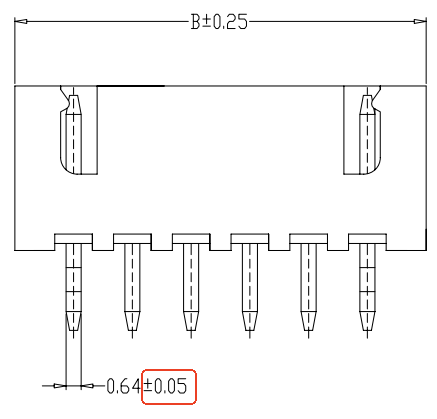

Why 0.2mm? Manufacturers apply tolerances to physical dimensions — actual sizes vary from nominal values. Most lead diameter tolerances are approximately ±0.05mm, and the 0.2mm margin reliably accommodates this variation, ensuring consistent component insertion.
The IPC (Association Connecting Electronics Industries) provides authoritative guidance for PCB design and manufacturing. According to IPC-2221B and related standards, through-hole size is calculated using:
Minimum Hole Size = Maximum Lead Diameter + Allowance
IPC defines three allowance levels based on product application class and component density:
| Level | Application | Calculation | Description |
|---|---|---|---|
| Level A | General purpose | Max lead diam + 0.25mm | Largest tolerance for standard density designs |
| Level B | Medium density | Max lead diam + 0.20mm | Balanced option for most designs |
| Level C | High density | Max lead diam + 0.15mm | Smallest tolerance for space-constrained designs |
Important: Always use the Maximum lead dimension from the datasheet, not the "Typical" value. This is critical for avoiding assembly issues caused by component batch variations.
For square or rectangular leads, the effective diameter is the diagonal dimension. Calculate the maximum diagonal using the Pythagorean theorem, then use this as the "maximum lead diameter" in the IPC formula.
For a rectangular lead with cross-section dimensions a and b:
Maximum Effective Diameter (Diagonal) = √(a² + b²)
Example: A 0.64mm × 0.64mm square lead has a maximum effective diameter of √(0.64² + 0.64²) = 0.905mm. Adding 0.2mm gives a suitable hole size of 1.1mm.
If the datasheet specifies only a positive tolerance (e.g., 0.9mm+0.1mm/-0), use the nominal value + full positive tolerance.
Example: A spec of 0.9mm+0.1mm/-0 translates to a hole size of 1.0mm.
Once the hole size is determined, the pad diameter must be designed to provide a reliable Annular Ring. The annular ring width directly affects solder joint strength and electrical reliability.
Pad Diameter = Hole Size + 2 × (Minimum Annular Ring) + (Manufacturing Tolerance)
According to IPC standards, the minimum annular ring should typically be no less than 0.15mm (6 mils). Consider the manufacturer's process capabilities and follow DFM principles, communicating with your manufacturer when necessary.
| Defect Type | Cause | Consequence |
|---|---|---|
| Insertion Difficulty | Hole too small | Rework required, risk of lead or board damage |
| Component Shift | Hole too large | Component tilt during wave soldering, affecting performance and appearance |
| Soldering Defects | Excessive hole-to-lead ratio | Voids, insufficient fill, or weak solder joints — long-term reliability risks |
Precise through-hole size design bridges design and manufacturing. By following IPC standards and applying rigorous design practices, engineers can significantly improve manufacturability, assembly efficiency, and product reliability — reducing production costs and accelerating time-to-market.
Key Takeaways:
Always use the maximum lead dimension from the datasheet
Select the appropriate IPC tolerance level (A/B/C) based on product density
For square/rectangular leads, use the diagonal as the effective diameter
For one-way tolerances, use nominal + full positive tolerance
Ensure pad diameters provide sufficient annular ring width
Communicate with your manufacturer about process capabilities during the design phase
