Success with a prototype doesn't mean your design is production-ready. Many designs work perfectly in the lab but encounter problems during manufacturing — insufficient test coverage, component sourcing difficulties, placement accuracy issues, inadequate rework clearances, and more. These problems can often be anticipated and avoided during the design phase.
This guide covers the most common PCB design pitfalls that impact manufacturability and offers practical solutions to help hardware engineers transition smoothly from prototype to mass production.
The Problem: This is one of the most frequent design oversights. Without test points, manufacturers cannot verify board functionality, leading to:
Inability to measure power rails, check communication buses, or confirm firmware loading
Defects go undetected early, making later fixes more expensive
Manufacturers may ship boards untested or charge extra for custom test fixtures
Solutions:
Add test points for all critical signals — power, ground, reset, communication buses, key GPIOs
Avoid placing test points on RF or high-frequency signals where parasitic capacitance could cause signal integrity issues
Place all test points on the same side of the board (typically the bottom side, opposite components) to simplify test fixture design
Include ground pads near test points and clearly label them
Avoid placing test points on both sides of the board, as this requires more complex and expensive dual-sided "bed-of-nails" test fixtures
The Problem: This seemingly minor oversight can cause significant production confusion:
Manufacturers may confuse different design versions, producing the wrong revision
Debugging becomes difficult when the board revision on hand cannot be identified
Solutions:
Always include the part number/project name and revision on the PCB silkscreen, e.g., "PCB-1234 Rev.B"
Keep labels small, unobtrusive, but clearly legible
Ensure the information on the PCB matches the BOM, Gerber files, and pick-and-place files
The Problem: In complex boards or high-volume production, this seriously impacts manufacturability:
Pick-and-place machines cannot accurately align the board, causing component placement errors
Manufacturers must manually align boards (slow and error-prone) or modify files to add fiducials
Solutions:

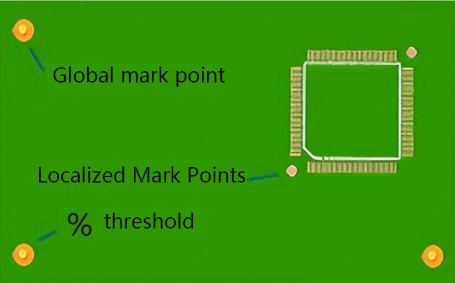

Add at least two global fiducial marks on the board, ideally at opposite corners for more reliable alignment
For high-density packages like QFN, BGA, or fine-pitch connectors, consider adding local fiducial marks near these components for improved placement accuracy
Ensure at least 1mm clearance around fiducial marks and do not cover them with solder mask — keep them bare copper or gold-plated
The Problem: Volume production, especially for small boards, requires panelization:
Without planning, the manufacturer may design a panelization that interferes with your layout
Poor depaneling design can cause board cracking, connector damage, or solder joint failure
Solutions:
Consider panelization from the start of your design, especially for smaller boards
Add mouse bites or V-cut scoring and keep critical components away from panel edges
Communicate with your manufacturer about their preferences for tooling holes, panel dimensions, and spacing, and request panel templates
The Problem: In an unstable supply chain environment, this is a major issue:
Component shortages can halt production and cause delivery delays
Manufacturers may substitute parts without notifying you, increasing product risk
Solutions:
Before finalizing the BOM, check component availability
Ensure each critical part is available from multiple suppliers and is not approaching End-of-Life (EOL)
Choose parts that are easy to find and well-supported, avoiding rare or proprietary components
The Problem: Placing components too closely together to save space in prototypes causes problems in production:
Difficult rework — probing, resoldering, or replacing components becomes challenging
Components of different heights placed too closely can cause inspection shadowing and even affect reflow soldering
Solutions:
Avoid placing components too tightly unless absolutely necessary
Leave extra clearance around connectors, tall components, and any parts likely to require debugging or rework
Provide space for rework tools (human hands, tweezers, soldering irons)
The Problem: Designs are released without a systematic manufacturability review, causing problems that are only discovered during production.
Solutions:
Conduct a systematic Design for Manufacturability (DFM) and Design for Assembly (DFA) review during the design phase
Understand your manufacturer's process capabilities — minimum trace/space, minimum via diameter, solder mask dams, etc.
Set conservative constraints in your design rules to provide manufacturing margin
The journey from prototype to production is often challenged not by "can it function" but by "can it be manufactured consistently, efficiently, and cost-effectively."
Key Principles:
Design for manufacturing early — considering production feasibility early is key to avoiding costly rework and delays
Communicate proactively — engage with your manufacturer to understand their process capabilities and preferences
Use available tools — leverage design rule checks and DFM tools to identify potential problems before fabrication
Establish standardized processes — create consistent design review and checking procedures to avoid repeating mistakes
