In PCB design, crosstalk is one of the most common signal integrity issues. When a signal on one trace couples to an adjacent trace through parasitic capacitance and inductance, crosstalk occurs. Like the faint echo of other conversations on old telephone lines, crosstalk is "signal leakage" where it doesn't belong.
This guide explores the differences between Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT), their root causes, and practical suppression techniques for PCB design.
Both near-end and far-end crosstalk arise when a driving signal couples part of its energy into adjacent interconnects — whether in a PCB, cable, or integrated circuit. Crosstalk is undesirable because we want interconnects to transmit only the signal from the driving component. Generally, crosstalk cannot be completely eliminated; it can only be reduced to acceptable levels.
The key difference is the measurement location:
| Type | Measurement Location | Alias |
|---|---|---|
| Near-End Crosstalk (NEXT) | Near the driver (source) end of the victim interconnect | Backward Crosstalk |
| Far-End Crosstalk (FEXT) | Near the receiver (load) end of the victim interconnect | Forward Crosstalk |

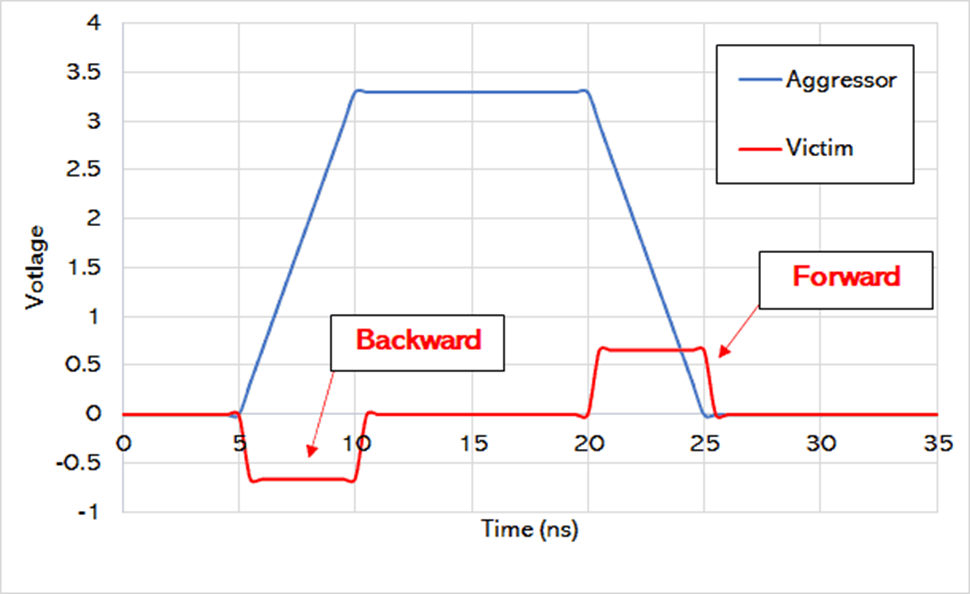

Near-end crosstalk is called "backward crosstalk" because the crosstalk signal must propagate "backward" along the victim interconnect — toward the driver, opposite to the direction of the aggressor signal. Similarly, far-end crosstalk is called "forward crosstalk" because the signal travels forward to the receiver to be detected.
All crosstalk is generated through two coupling mechanisms:
1. Capacitive Coupling (Parasitic Capacitance)
Caused by voltage differences between two interconnects. When the voltage on one trace changes, energy couples to the adjacent trace through parasitic capacitance.
2. Inductive Coupling (Parasitic Inductance)
Generated when the aggressor signal transitions. Higher signal edge rates (dV/dt, dI/dt) produce stronger crosstalk. Inductive crosstalk only occurs during signal transitions.
In the circuit model describing interconnects, mutual capacitance and mutual inductance characterize the coupling between the aggressor and victim interconnects.
Crosstalk cannot be completely eliminated, but it can be significantly reduced through proper PCB design. Here are the most effective crosstalk suppression methods:
This is the simplest and most effective method. Crosstalk intensity is inversely proportional to the square of trace spacing — greater spacing means less crosstalk. Follow the 3W rule (trace spacing ≥ 3× trace width), and for high-frequency designs, consider ≥ 5× trace width.
Add ground copper pours or guard traces with ground vias between aggressor and victim traces to effectively shield electric field coupling. The spacing between ground via fences should be less than 1/10 of the signal wavelength.
Reduce loop inductance — and thus inductive coupling — by widening trace width or decreasing the distance to the reference plane.
Crosstalk intensity is proportional to parallel trace length. Minimize parallel routing length for high-speed signals, or route on different layers with perpendicular orientation.
A continuous ground plane provides a low-impedance return path for signals and reduces crosstalk caused by return path coupling.
Route differential pairs with matched length, matched spacing, and tight coupling. Common-mode noise cancels out, effectively suppressing crosstalk.
Beyond near-end and far-end crosstalk, several other terms are used in the telecommunications field:
| Term | Description |
|---|---|
| Alien Crosstalk (AXT) | Specifically refers to crosstalk between different cable bundles in UTP cabling; can also describe crosstalk in PCBs |
| Power Sum NEXT / FEXT (PS-NEXT / PS-FEXT) | The total power of all crosstalk signals combined |
| Power Sum Equal-Level FEXT (PS-ELFEXT) | The sum of PS-FEXT and PS-NEXT |
For most digital PCB designs, these are less common scenarios. The exception is very high-frequency applications — such as high-power RF/wireless systems. These systems typically require 3D field solver simulation to accurately quantify crosstalk and determine when it exceeds allowable limits.
Crosstalk is a signal integrity concern that cannot be ignored in high-speed PCB design. Understanding the difference between near-end and far-end crosstalk, their mechanisms, and suppression techniques is fundamental to designing reliable high-speed circuits.
Key Takeaways:
Near-End Crosstalk (NEXT) — measured at the driver, propagates backward
Far-End Crosstalk (FEXT) — measured at the receiver, propagates forward
Crosstalk is generated through capacitive coupling and inductive coupling
Increasing spacing, using shielding, and reducing loop inductance are the most effective suppression techniques
